neodymiumpotmagnets with swivel stainless steel hooks
neodymiumpotmagnets with swivel stainless steel hooks

Swivel Hook Magnets

Pot Magnets With Swivel Hooks. These swivel (rotary) magnetic hooks consist of neodymium or ferrite round base (pot) magnets and steel hook which is reversible, the hook can rotate up and down and left and right. The swivel (rotary) magnetic hooks have many functions and unique appearance. They can be used in many scenes to meet various angle applications. Everything from jackets and handbags to lanyards and belts is easy to be held.


Request Offer

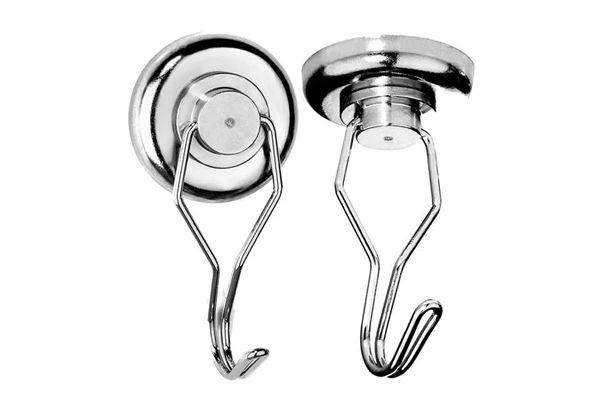

Neodymium (Pot) Magnets with Swivel Stainless Steel Hooks

Our nickel plated neodymium swivel(rotary) magnetic hooks(hook magnets) are supplied with size of D25mm, D32mm, D36mm,D40mm and D42m. With powerful magnetic base and durable hooks, the strong neodymium swivel magnetic hooks can also be used to hang heavy objects on refrigerators, lockers, filing cabinets and utilities.

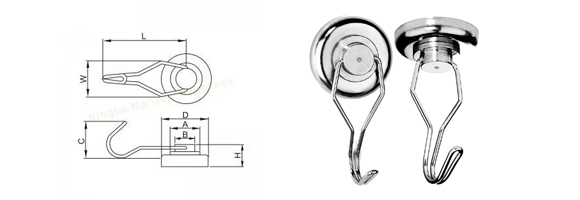

Neodymium(Pot)Magnets With Swivel Stainless Steel Hooks

Model

D

A

B

C

H

L

W

Vertical Force(Kgs)

Side Force(Kgs)

Weight(g)

RMH-D25

25

20

13.5

24

15.5

55

23

14

3.5

38

RMH-D32

32

20

13.5

24

15.5

55

23

23

5.5

52

RMH-D36

36

20

13.5

24

15.5

55

23

40

6.5

65

RMH-D40

40

20

13.5

24

15.5

55

23

50

7

84

RMH-D42

42

20

13.5

24

16.5

55

23

65

8

92


Ferrite (Pot) Magnets With Stainless Rotary Hooks

This items is ferrite(pot)magnets with rotary stainless hook, which suit both for magnetic ceiling or wall hook. Ferrite swivel(rotary)magnetic hooks are more durable because of the corrosion resistant feature. We have white or black ferrite swivel(rotary) magnetic hooks for sale, and the sizes are available of 36mm and 52mm.


Ferrite(Pot) Magnets With Stainless Rotary Hooks

Model

D(mm)

d(mm)

d1(mm)

H(mm)

h(mm)

l(mm)

Weight(g)

Vertical Force(kg)

Horizontal Force(kg)

FRH-36

36

16

10.8

14.5

8.3

20

50

4.2

1.7

FRH-52

52

16

10.8

14.5

8.3

20

80

7.4

2.5


Like as common magnetic hooks, magnetic swivel hooks are also particularly suitable for using as magnetic ceiling hooks, and attached at the bottom of steel beams to carry vertical loads. The holding force when used as wall kooks depend on the smoothness of the wall. However, kitchen towels or portable tools can be hanged without problems


Neodymium swivel(rotary)magnetic hooks are super strong but expensive, they mainly used for heavy duty hanging,for hanging light objects, ferrite swivel magnetic hooks are better choice to save cost.



Inquiry Instructions for Neodymium Swivel Magnetic Hook

To quickly and correctly make offer for neodymium swivel magnet(magnetic)hooks, we need these information.

  • Size: select the appropriate size according to the pull force parameter in the standard product parameters table.

  • Order quantity: the cheaper price is available for larger quantity.

  • Surface treatment requirements: neodymium swivel magnetic hooks can be made with nickel plating, zinc plating and painting.We also supply rubber coated swivel magnetic hooks.

  • Packaging requirements: Please let us know if there are special packaging requirements.
