Category | Disc Magnet |
Material | Sintered Neodymium, N42 |
Dimension | D25 x 10mm |
Magnetized | Axially(poles on flat ends) |
Coating | NiCuNi |
Strength | approx. 14kg |
Weight(1 piece) | 37g |
Tolerance | +/-0.05mm |
Max.Working Temp. | 80℃ |
Central Surface Field | 4100Gauss |

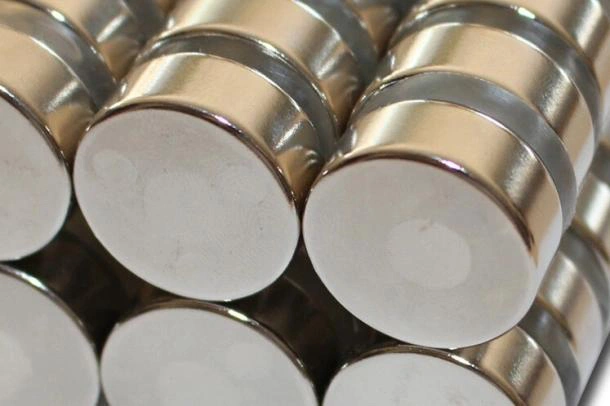

25x10mm Strong Neodymium Disc Magnets
25x10mm Strong Neodymium Disc Magnet Description
N42 Strong Disc Magnets 25mmx10mm, Rare Earth Neodymium Magnet Disc ( 25mm diameter x 10mm thickness)
25x10mm Strong Neodymium Disc Magnet Specification
Product: Neodymium Disc Magnet.
Size: 25*10mm ( 25mm diameter x 10mm thickness)
Material Grade:N42
Surface Treatment: Nickel-Copper-Nickel (three layers coating)
Operating temperature: ≤80°C
25x10mm Strong Neodymium Disc Magnet Feature
The grade of rare earth neodymium disc magnet 25x10mm is N42,which has about 14kgs magnetic force and 4100 Gauss surface magnetic field.The strong neodymium disc magnets are supplied with standard tolerance of +/-0.05mm and with three layers coating.It is difficult to separate the strong disc magnets once they directly attracted each other.
Thank You for Your Attention to Meank
Meank supports customized magnets to meet your various demand.
