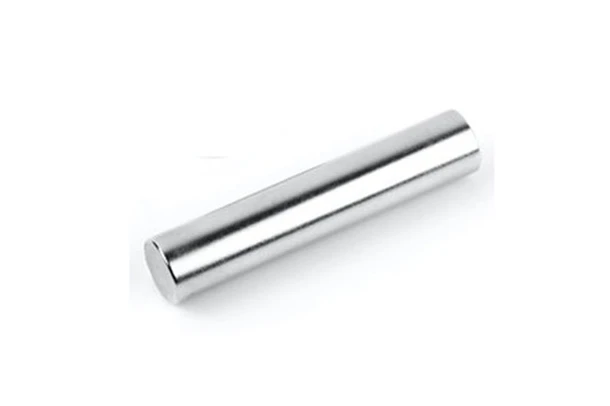

12x60mm Powerful Neodymium Cylinder Magnets

Category

Rod/Cylinder Magnets

Material&Grade

Sintered NdFeB, N38

Dimension

D12 x 60mm

Magnetized

Axially(poles on flat ends)

Coating

NiCuNi

Strength

approx. 5.6kg

Weight(1 piece)

52 g

Tolerance

+/-0.05mm

Max.Working Temp.

80℃

Central Surface Field

6200Gauss


12 x 60mm Powerful Neodymium Cylinder Magnets Description

12x60mm Neodymium Rod(Cylinder) Magnets N38, 12x60mm Rare Earth Rod Magnets ,12 x 60mm powerful cylinder magnets

12 x 60mm Powerful Neodymium Cylinder Magnets Specification

Product: Powerful Neodymium Cylinder Magnet.

Size: 12*60mm ( 12mm diameter x 60mm height)

Available Material Grade: N35, N38, N40, N42, N45, N48, N50, N52

Surface Treatment: Nickel-Copper-Nickel (three layers coating)

Operating temperature: ≤80°C

12 x 60mm Powerful Neodymium Cylinder Magnets Feature

For neodymium cylinder(rod) magnets,12x60mm is a big size which have powerful strength. Even if a 12x60mm neodymium cylinder magnets of N38 has about 5.6kgs strength, and the central surface field is up to 6200Gs. The most popular coating for 12x60mm powerful neodymium cylinder magnets is Nickel.
