Wide Size Range Of External Thread Ferrite Mounting Magnets For Sale, Our external(male) threaded ferrite pot(mounting, holding) magnets various in dimension from 16mm to 125mm. And the most popular sizes is 25mm, 32mm, 40mm, 50mm, 63mm. The steel house of these ferrite mounting magnets are usually plated with Nickel or Zinc.

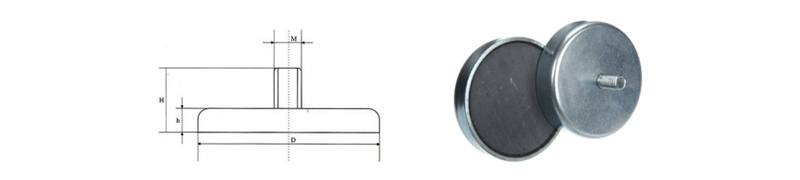

Model | Dimension | Pull Force (N) | |||
D(mm) | H(mm) | h(mm) | M(mm) | ||
Ferrite-C-10 | 10 | 11.5 | 4.5 | M3 | 4 |
Ferrite-C-13 | 13 | 11.5 | 4.5 | M3 | 10 |
Ferrite-C-16 | 16 | 11.5 | 4.5 | M3 | 10 |
Ferrite-C-20 | 20 | 13 | 6.0 | M3 | 30 |
Ferrite-C-25 | 25 | 15 | 7.0 | M4 | 40 |
Ferrite-C-32 | 32 | 15 | 7.0 | M4 | 80 |
Ferrite-C-36 | 36 | 16 | 8.0 | M4 | 100 |
Ferrite-C-40 | 40 | 18 | 8.0 | M5 | 125 |
Ferrite-C-47 | 47 | 17 | 9.0 | M4 | 180 |
Ferrite-C-50 | 50 | 22 | 10.0 | M6 | 220 |
Ferrite-C-57 | 57 | 18.5 | 10.5 | M6 | 280 |
Ferrite-C-63 | 63 | 30 | 14.0 | M8 | 350 |
Ferrite-C-80 | 80 | 34 | 18.0 | M10 | 600 |
Ferrite-C-100 | 100 | 43 | 22.0 | M12 | 900 |
Ferrite-C-125 | 125 | 50 | 26.0 | M14 | 1300 |
Please fill the form to let us know your need. Our sales will get in touch with you ASAP.
