Category | Disc Magnet |
Material | Sintered Neodymium, N42 |
Dimension | D10 x 3mm |
Magnetized | Axially(poles on flat ends) |
Coating | NiCuNi |
Strength | approx. 1.8kg |
Weight(1 piece) | 1.8g |
Tolerance | +/-0.05mm |
Max.Working Temp. | 80℃ |
Central Surface Field | 3390Gauss |
10x3mm Small Neodymium Disc Magnets
10x3mm Small Neodymium Disc Magnet Description
10mm x 3mm Rare Earth Neodymium Disc Magnets N42, Small Neodymium Round Magnet 10x3mm
Our super thin magnets are incredibly lightweight and slim, making them ideal for applications requiring a low profile. Despite their small size, these rare earth magnets offer impressive strength and holding power. Choose from a range of shapes and sizes to meet your specific needs in robotics, electronics, and more.
10x3mm Small NdFeB Magnets Disc Specification
Product: small neodymium disc magnets
Size: 10*3mm (10mm diameter x 3mm thickness)
Material Grade: N42
Surface Treatment: Nickel-Copper-Nickel (three layers coating)
Operating temperature: ≤80°C
10x3mm Small Neodymium Disc Magnet Feature
The small neodymium disc magnets 10x3mm that made with grade of N42 have central surface magnetic field of 3390Guass and 1.8kgs strength. The maximum working temp. for N42 magnets is 80℃. If you are looking for a small size strong disc magnets, neodymium magnet 10*3mm will be the one for you. If you want to make it stronger, just think of higher grade of N48, N50 or N52. Neodymium magnets 10*3mm are used as magnetic button.

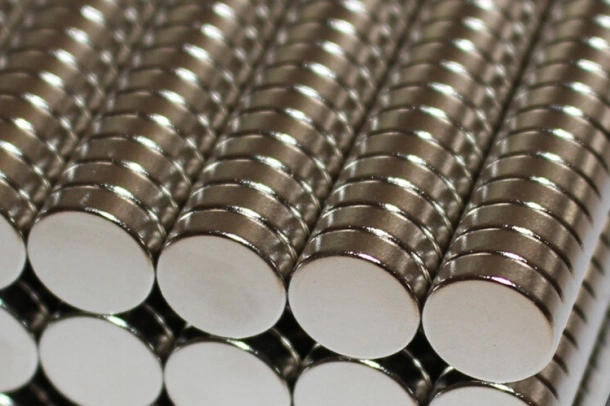

N42 round neodymium permannet magnet 10x3mm with nickel coating
10x3mm nickel coated disc permanent magnet of neodymium N42
Thank You for Your Attention to Meank
Meank supports customized magnets to meet your various demand.
