N35 Neodymium Block Magnets 15x15x4mm With Countersunk Hole
Category | Countersunk Magnet |
Material&Grade | NdFeB-N35 |
Length | 15mm |
Width | 15 mm |
Thickness | 4mm |
Tolerance | +/- 0.05 mm |
Direction Of Magnetization | Axially(through thickness) |
Coating | Nickel-plated (Ni-Cu-Ni) |
Strength | approx. 4.5kg |
Max. working temperature | 80°C |
Colour | Silver-coloured |
Weight | 5.8g |
Nickel Coated Neodymium Block Magnets 15x15x4mm With Countersunk Borehole
Neodymium magnets with countersunk holes offer high holding power and a streamlined design for efficient and versatile use in manufacturing, engineering, and DIY projects.
Material: Sintered NdFeB
Size: 15x15x4mm with M3 or M4 mounting hole
Available Grade: N35-N52 Block Magnet; 33M-50M; 35H-48H; 35SH-45SH; 28UH-40UH; 28EH-38EH; 28AH-33AH
Operating temperature: N-Series ≤80°C; M-Series ≤100°C; H-Series ≤120°C; SH-Series ≤150°C; UH-Series ≤180°C; EH-Series ≤200°C; AH-Series ≤230°C;
Surface Treatment: Nickel-Copper-Nickel, Zn, Epoxy, Teflon

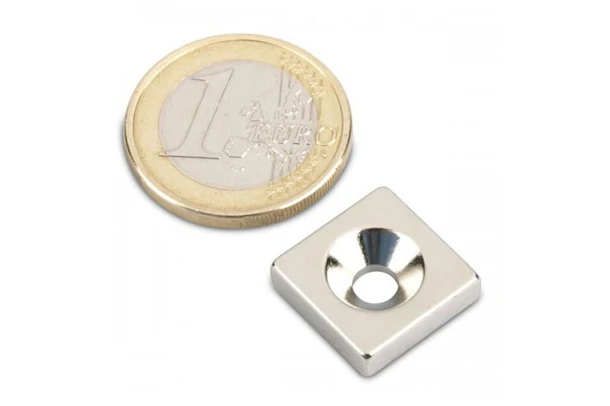

The square neodymium magnet has a 4.5mm hole and countersunk hole in the center. This square countersunk magnet can be screwed onto components or non-magnetic surfaces with countersunk screws. One N35 neodymium block magnets 15x15x4mm with countersunk hole has strength of 4.5kg.

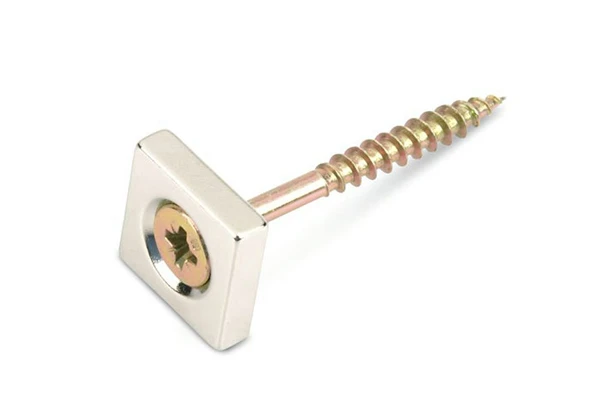

Several types of screws, such as wooden slotted screws with countersunk head, machine screws, countersunk screws with Torx or hexagon socket can be used to fix the countersunk neodymium magnets. The top diameter of the screw head is 9.46 mm.
Note: neodymium countersunk magnet may break due to too much force. Therefore, when screwing on this countersunk magnet, we recommend a maximum tightening torque of 2Nm.
Square Rare Earth Magnets 15x15x4mm With M3 Or M4 Counterbore Hole
Neodymium Block Magnets 15x15x4mm With M4 Countersunk Mounting Hole
