  • 20mm Rare Earth Neodymium Cube Magnets
  • 20mm Rare Earth Neodymium Cube Magnets

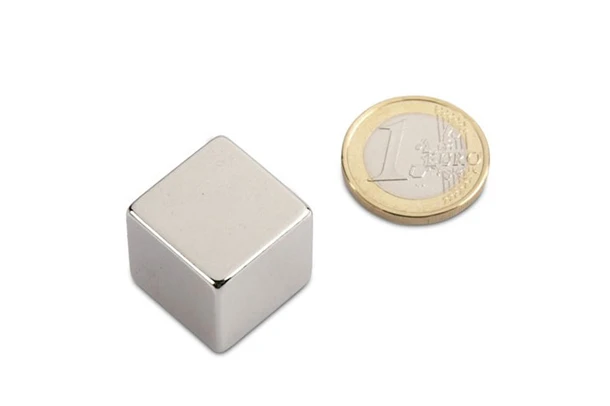

20mm Rare Earth Neodymium Cube Magnets

N45 Nickel Plated Rear Earth Neodymium Cube Magnets 20x20x20m


Category

Cube magnet

Material&Grade

NdFeB-N45

Length

20 mm

Width

20 mm

Thickness

20 mm

Tolerance

+/- 0.05 mm

Direction Of Magnetization

Axially(through thickness)

Coating

Nickel (Ni-Cu-Ni)

Strength

approx.25 kg

Max. working temperature

80°C

Colour

Silver

Weight

60 g


20mm Rare Earth Neodymium Cube Magnets Description

Super Strong Rare Earth Neodymium Cube Magnets 20x20x20mm With Nickel Plated

20mm Rare Earth Neodymium Cube Magnets Specification

Product: Neodymium Cube Magnet.

Size: 20x20x20mm

Maximum Grade: N52

Surface Treatment: Nickel-Copper-Nickel, Gold, Silver, Epoxy

Operating temperature: ≤80°C

20mm Rare Earth Neodymium Cube Magnets Features

In neodymium cube magnets series, 20mm is one of the most popular big size which widely sold by magnet distributors. Because of the big size, it is super strong, one N45 neodymium cube magnet 20mm has strength of 25kgs. To make it easy to be took apart,neodymium cube magnets 20x20x20mm are delivered with thick plastic piece between every one. However care are still needed to handle such super strong cube magnets.

Thank You for Your Attention to Meank

Meank supports customized magnets to meet your various demand.
