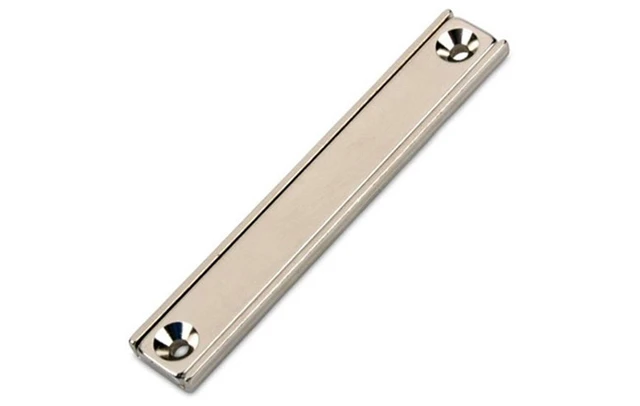

80x13.5x5mm Custom Neodymium Magnets With Countersunk Holes

Custom neodymium magnets with countersunk holes measuring 80x13.5x5mm offer a versatile solution for specific applications where a strong magnetic attachment is required along with easy mounting using screws or bolts.

Request Offer

Specifications of 80x13.5x5mm Custom Neodymium Magnets With Countersunk Holes

Product Nameneodymium channel magnets with countersunk mounting holes
Category By ShapeChannel Magnet
Material&GradeNdFeB-N35
Length80 mm
Width13.5 mm
Thickness5 mm
Countersunk HolesM3
Tolerance+/- 0.1 mm
CoatingNickel-plated (Ni-Cu-Ni)
Strengthapprox. 33kg
Max. working temperature80℃
Weight38 g
Magnetic Strengthabout 33 kgs
Surface TreatmentNickel-Copper-Nickel


Description Of Neodymium Channel Magnets 80x13.5x5mm

80x13.5x5mm is one of the most popular size for neodymium channel magnets. The big size make the channel magnet super strong,even a neodymium channel magnet 80x13.5x5mm of the lowest grade N35 is up to 33kgs, which is strong enough for most of magnetic mounting and holding. Nickel-copper-nickel three layers surface treatment make the channel magnets durable.


  • 80x13.5x5mm Neodymium C-channel Screw On Magnets M3 Holes

  • C-channel Neodymium Mounting Magnets 80x13.5x5mm With M3 Holes
