Category | Ring Magnet |
Material | Neodymium, N42 |
Dimension | OD10 x ID4 x 5mm |
Magnetized | Axially |
Coating | NiCuNi |
Strength | approx. 2.5kg |
Weight(1 piece) | 2.5g |
Tolerance | +/-0.05mm |
Max.Working Temp. | 80℃ |
Central Surface Field | 4400Gauss |
D10xd4x5mm Rare Earth Neodymium Ring Magnets
D10xd4x5mm Rare Earth Magnet Rings Description
N42 D10xd4x5mm Rare Earth Neodymium Ring Magnet With Nickel Coating
Our neodymium ring magnets are incredibly strong and offer a unique opportunity for applications requiring a center hole. Made from rare earth metals, they are ideal for a variety of industries including automotive, aerospace, and electronics. Choose from a range of sizes and strengths to meet your specific needs.
D10xd4x5mm Rare Earth Neodymium Ring Magnets Specification
Product: Rare Earth Neodymium Ring Magnet
Size: D10*d4x5mm ( OD10 x ID4 x H5mm)
Available Grade: N35, N38 ,N40,N42, N45, N48, N50, N52
Surface Treatment: Nickel-Copper-Nickel (three layers coating)
Operating temperature: ≤80°C
D10xd4x5mm Rare Earth Neodymium Ring Magnets Feature
That is axially magnetized rare earth neodymium ring magnets,the poles are on two flat surface.
That is powerful ring magnet because it made from the strongest magnetic material,the strength of D10xd4x5mm neodymium ring magnets N42 is about 2.5kgs.
All grades are available for D10 x d4 x 5mm rare earth neodymium ring magnets.

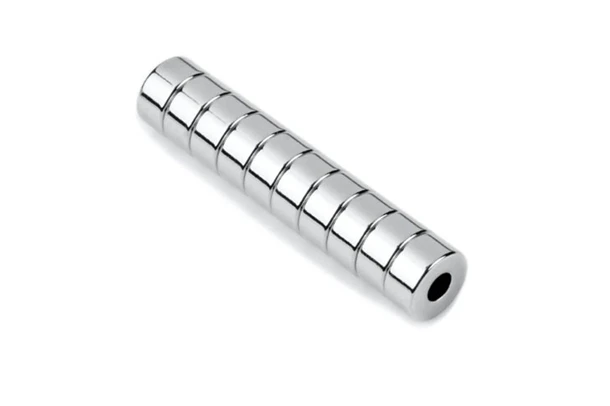

Nickel coated circular ring neodymium magnets OD10xID4xH5mm
10x5mm round disc shaped neodymium magnets with 4mm hole
Thank You for Your Attention to Meank
Meank supports customized magnets to meet your various demand.
